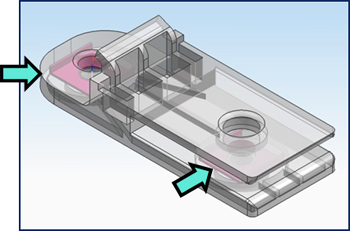

 Car Door Grip(Speed Nut Type) |
| |
 |
 |
| |

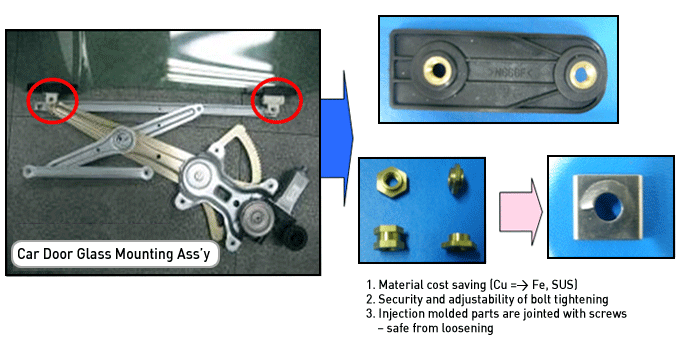

- Provide car door glass drive with glass holder function Clip type
to Adhesive type
- Design and material of the insert nut (patented) which is an assembly
of car door grip, reducing cost
- Competitive price achieved by using common materials (Fe, SUS)
- Manufacturing process of insert nuts is improved to achieve higher
productivity |
|
 |
|
|
| |
|
| |
 |
 |
| |
  |
| |
| |

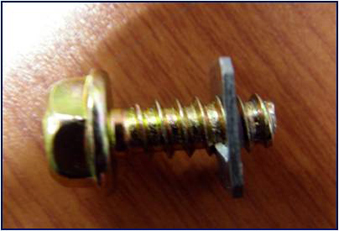

¡ß The effects of replacing the insert nuts (brass) of car door glass grip with ¢º Speed Nut (Fe);
1. Material and process costs are reduced
¡Û Material cost saving by replacing expensive brass with Fe,
¡Û Cost reduction by press process of the Speed Nut screw in place of cutting.
2. Screw is formed in injection molding process providing the product with lock-nut function to prevent loosening.
¡Û Loosening torque is more than 15kg/§² - safe from loosening after assembly.
3. The combination of the Speed Nut and screw was certified for 120kg/§² or more of failure strength. |
| |
|
|
|
|
|
|
 |
