 Clip Type Tire Balance Weights |
| |
 |
 |
| |
- Body is manufactured by cold forging to improve appearance and rigidity
- Body is manufactured with asymmetrical cross section to prevent
interference with wheel cap
- Body profile is in accordance with the R (radius) of wheel, improving
appearance
|
|
 |
|
|
| |

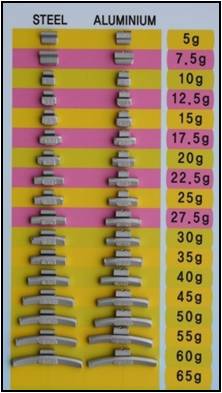

1. Product Unit : 5g ¡ 100g
1) 5g ¡ 30g: by 2.5g steps (5g, 7.5g, 10g, 12.5g¡¦¡¦ 30g)
2) 35g ¡ 100g: by 5g steps (35g, 40g¡¦¡¦¡¦.100g)
2. Material
1) Body: SWRM
2) Clip: SK-5
3. Surface Treatment : GEOMET (corrosion proof for 480hr)
4.Materials are classified into aluminum and steel wheels
- Product should be classified by wheel flange
|
|
| |
 |
 |
| |
  |
| |
| |
¡ß Material: Steel (Fe:SWRM + SK-5)

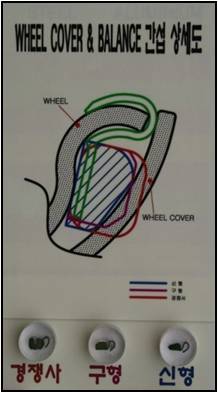

1. Cross section of weight balance body is improved to prevent interference with wheel cover
¢¹ From conventional square => triangle (asymmetric forging)
2. Product specification (weight) is diversified (2.5g) to enable precise correction of wheel unbalance
¢¹ From conventional 5g steps => 2.5g steps
3. Clip design is optimized according to wheel specifications to improve detachment force
(Detachment force increased by more than 20% compared with other products: 20kg/§² or above) |
| |
