 Packing-Semi Circular |
| |
 |
 |
| |
- Conventional products require higher cost in the cutting process of
semi circular part.
- Cutting process is replaced by diecast molding and precision cast
technology to reduce manufacturing cost.
- The problems in the conventional products and easiness of assembly
are improved. |
|
 |
|
|
| |
 |
| |
 |
| |
1. Cutting semi-circular part

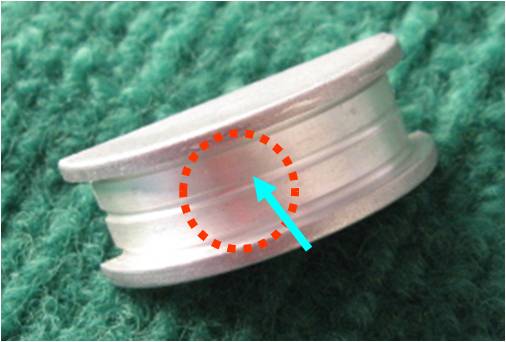

- The part for assembly (arrow mark) is formed by cutting which is a costly process
ขน Process cost increase by 3-point process of the 0.5R part
- Cutting process produces material waste - cost increase
2. Process jig has to be made in semi-circular shape - cost increase
3. Material yield ratio is low in cutting process
- Producing cast dies by cutting process lowers material yield ratio
- Post-processes (washing, drying) are required |
|
| |
 |
 |
| |
 |
| |
| |

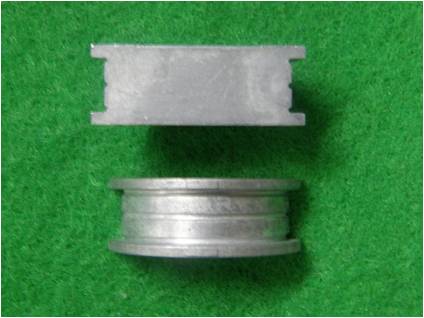

1. Cutting process eliminated by diecasting
ขน Product cutting process is eliminated by casting dies manufactured with precision casting technology
ขน Process cost reduced by eliminating cutting process
ขน Surface roughness improved with vibration barreling after finish
2. Material cost reduced by eliminating cutting process |
| |
  |
| |
| |

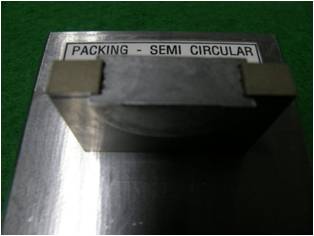

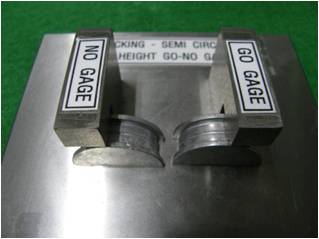

1. Product quality is secured with height inspection jig
2. Mold wear and assembly quality are assured with assembly jigs |
| |
